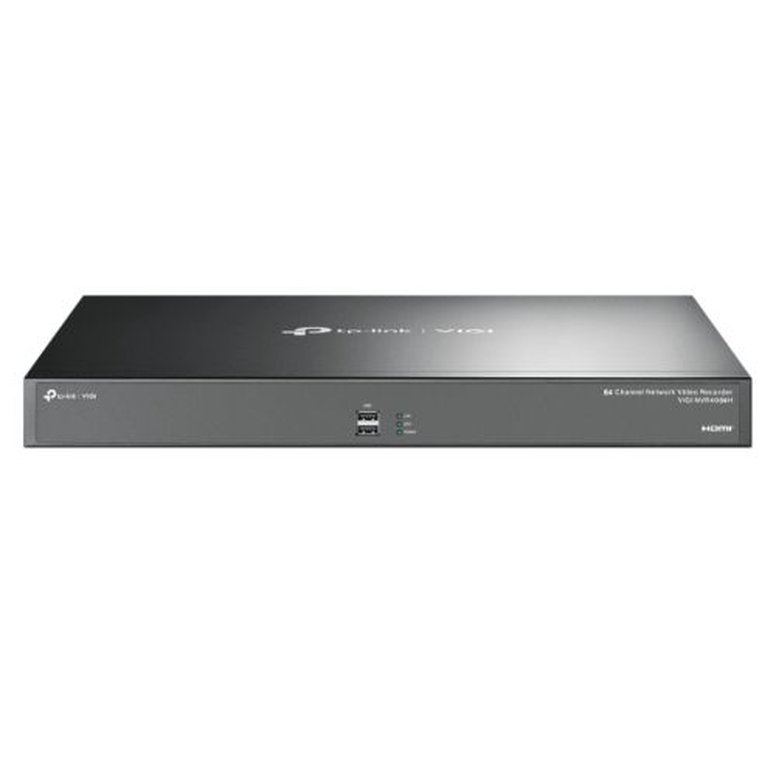

VIGI 64 Channel Network Video Recorder

• 64-Channel Live View and 4K HDMI Video Output
• Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
• 16-Channel Synchronous Playback
• 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
• 4× SATA Interfaces and 1 Up to 16 TB
• H.265+ Compression Technology
• 2 HDMI and 1 VGA Video Output
• Remote Monitoring

Description

Specification

• Access Camera Number: 64
• Incoming/Outgoing Bandwidth: Incoming Bandwidth:
  Default: 260Mbps
  Extended Bandwidth Mode: 320Mbps

  Outgoing Bandwidth:
  Default: 180Mbps
  Extended Bandwidth Mode: 320Mbps


• Network: "Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

  Mobile Phone Access: Android, iOS

  Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

  Interoperability: ONVIF Profile S, CGI

  "
• Interface(s): "2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  2 x Front USB 2.0, 1 x Rear USB 3.0
  Audio Interface: 1-ch RCA Input; 1-ch RCA Output
  Alarm In/Out: 16/4
  1 x Serial RS232
  Power: 1 x AC Jack
  1 x eSATA
  2 x HDMI
  1 x VGA"
• Video Input/Output: IP Video Input:
  64-Channel

  Video Output:
  HDMI1/HDMI2 Independent output
  HDMI1/VGA Independent output


• Decoding: "Audio Compression:
  G.711A/G.711U/G.726

  Video Compression:
  H.265+/H.265/ H.264+/H.264

  Record Resolution:
  8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  Synchronous Playback:
  16-Channel

  Capability:
  25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1
  30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP

  "
• HDD: 4 x SATA Interfaces
  Up to 16 TB Capacity for Each HDD
• PoE: -
• Power Supply: "100-240 VAC, 50 to 60Hz, 1.5A"
• Power Consumption: 6.95 W (Without Disk)
  48.38 W (With Disk)
• Record Management: "Record Mode:
  Manual Recording, Scheduling Recording, Motion Detection Recording

  Playback Mode:
  Instant Playback, Regular Playback, Tag Playback, Event Playback

  Backup Mode:
  Regular Backup, Video Clip Backup

  Playback Function:
  Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

  "
• Alarm: "General Alarm:
  Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame

  Anomaly Alarm:
  Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

  Alarm Linkage:
  Recording, White Light Alarm, Buzzer, Log, Audible Alarm

  "
• Weight/Dimensions: 4.0 kg
  (WxDxH) 440 x 330 x 44 mm
• Environment : Storage Temperature: -40–70 °C
  Storage Humidity: 10%~90% RH Non-Condensing
  Working Temperature: NVR: -10–55 °C
  Working Humidity: 10%~90% RH Non-Condensing
• Package Contents: VIGI Network Video Recorder
  Mouse
  Installation Guide
  Power Cord
  HDD Power Cables
  HDD Data Cables
  Terminal Blocks
  Mounting Brackets
  Screws
  Rubber Feet
• Additional Features: See Overview
• Package Weight: 5.6500 kg
• Warranty: 5 Years
