TP-LINK

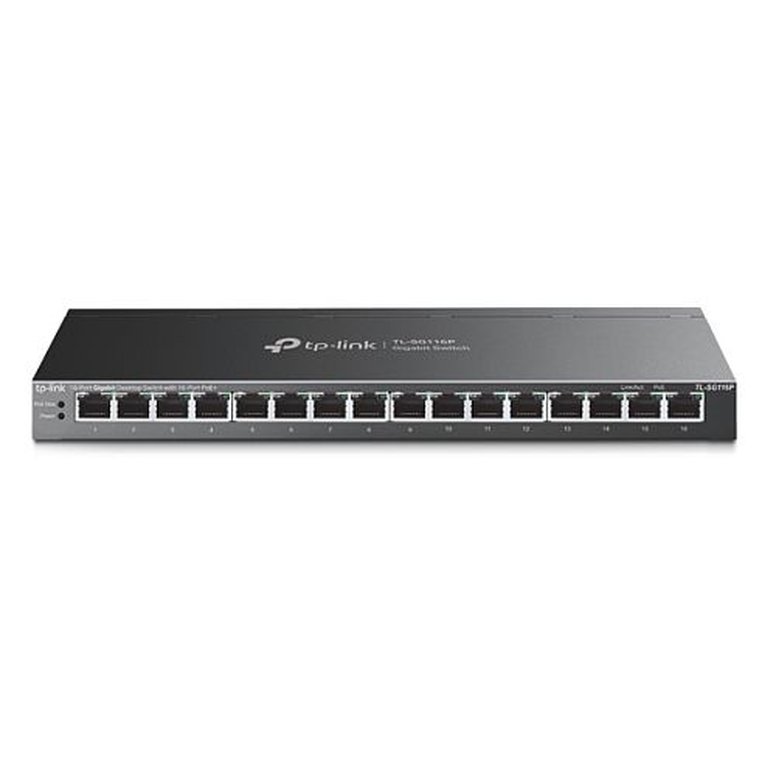

TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
£134.34
Out of stock
TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
TP-LINK
TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
£134.34
Out of stock
Product Details




16-Port Gigabit Desktop Switch with 16-Port PoE+


  • 16x 10/100/1000 Mbps RJ45 ports
  • With 16 PoE+ ports, transfers data and power on one single cable
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 120 W for all PoE ports*
  • Up to 250 m data and power transmission range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
  • Plug and play with no configuration required




*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Product Specification

Description

Specification

  • Rackmountable: No
  • Managed: No
  • Number of Ports: 16
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation
    AUTO MDI/MDIX
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant
    PoE Ports: Ports 1–16
    Power Supply: 120 W
  • Switching Capacity: 32 Gbps
  • Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
  • Dimensions: (WxDxH) 286 x 111.7 x 25.4 mm
  • Transfer Method: Store-And-Forward
  • Mac Address Table: "8K, Auto-learning, Auto-aging"
  • Packet Forwarding Rate: 23.8 Mpps
  • Additional Features: "Compatible With IEEE 802.3af/at Compliant PDs
    Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
    Priority Mode Button (Ports 1–4)
    Isolation Mode Button (Ports 1–7 / 8-14)
    PoE Auto Recovery (Ports 1-16)
    Mac Address Auto-Learning And Auto-Aging
    IEEE 802.3x Flow Control
    IGMP Snooping"
  • Quality of Service: 802.1p/DSCP QoS
  • Environment: Operating Temperature: 0–40°C (32–104°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: TL-SG116P
    Power Adapter
    Installation Guide
  • Package Type: Retail
  • Package Weight: 2.2500 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
