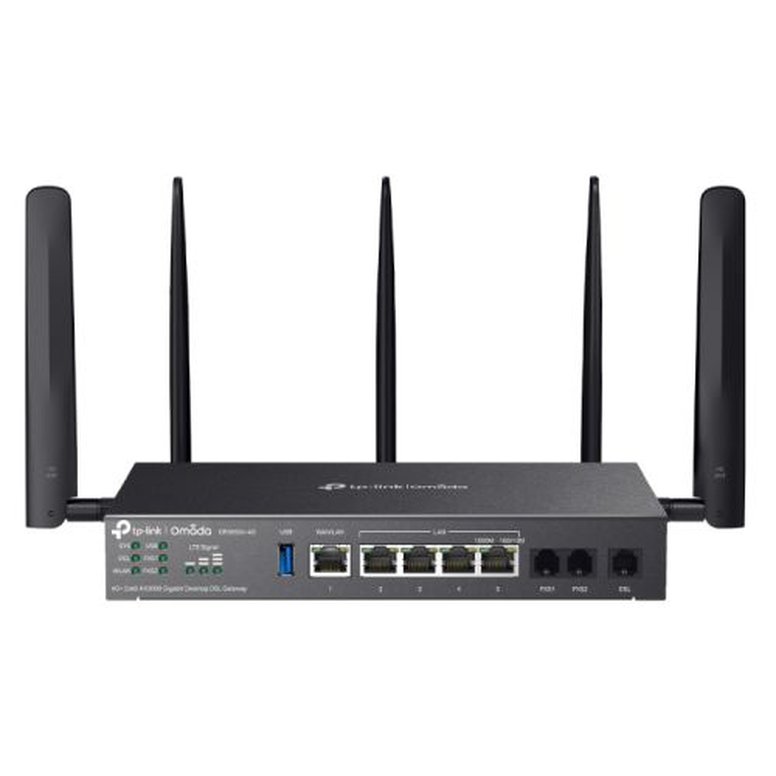

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

• AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• 4G+ Cat6 up to 300Mbps
• 3x RJ11 Ports (2x FXS, 1x DSL) & 5x RJ45 Gigabit Ports & 1x USB 3.0 Port
• 2x Nano SIM for 4G/LTE Failover
• VDSL2 35b: Supports 350Mbps DSL Access
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
• Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
• Centralized Cloud Management
• Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)

Description

Specification

• Type: VDSL2/ADSL2 Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: 2402 Mbps
  2.4 GHz: 574 Mbps
  4G+ Cat6 up to 300Mbps
• Interface(s): 1 x Gigabit WAN/LAN Port
  4 x Gigabit LAN Ports
  1 x DSL Port
  2 x FXS Ports
  1 x USB 3.0 (supports USB LTE dongle and USB Storage)
  Dual Nano SIM Slot (4G+ Cat6)
• Frequency: 2.4 GHz & 5 GHz
• Button(s): Reset Button
• Power Supply: 12V DC / 3.3A Power Adapter

  Max Power Consumption:
  Power adapter not included: 28.482 W (Full load + USB)
  Power adapter included: 31.42 W (Full load + USB)
• Antenna(s): Wi-Fi: 3x 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas
  LTE: 2x 4.0dBi omnidirectional detachable antennas
• Dimensions: (WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not
  included)
• Wireless Functions: Seamless Roaming
  Mesh (with EAP that supports Mesh)
  OFDMA
  Beamforming
  Enable/Disable SSID Broadcast
  Enable/Disable Wireless Radio
  MU-MIMO
  Load Balance
  Automatic Channel Selection Algorithm
  Airtime Fairness
  Rate Limit: Based on SSID/Client
  Transmit Power Control: Adjust transmit Power on dBm
  Multiple SSIDs: 16 in total (8 per radio)
  Guest Network
• Security: "WiFi Encryption:
  WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

  Access Control:
  Source/Destination IP Based Access Control

  Filtering:
  Web Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN"
• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• Port/NAT Forwarding: "66 Byte Packet Forwarding Rate:
  1,453,489 pps / 1,453,488 pps

  1,518 Byte Packet forwarding rate:
  81,274 pps / 91,275 pps"
• VPN Support: "GRE:
  Only in Standalone Mode

  SSL VPN:
  50 Tunnels

  IPsec VPN:
  100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  "
• .: PPTP VPN:
  PPTP VPN Server
  PPTP VPN Client (10)
  50 Tunnels
  PPTP with MPPE Encryption

  L2TP VPN:
  L2TP VPN Server
  L2TP VPN Client (10)
  50 Tunnels
  L2TP over IPSec

  OpenVPN:
  OpenVPN Server
  OpenVPN Client (5)
  55 OpenVPN Tunnels
  ""Certificate + Account"" Mode
  Full Mode

  WireGuard VPN:
  Yes
• Management: Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support
  TR-069 (data models of TR-098 and TR181 are supported)


• .: Management Features:
  Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive Portal Configuration
• Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization"
• USB Application: Supports USB LTE dongle and USB Storage
• Additional Features: Flash: 256 MB NAND
  DRAM: 512 MB DDR4
  Desktop/Wall-mounting (Purchase Rackmount Kit Separately)
• Environment: Operating Temperature: 0C°~40°C (32°F ~104°F)
  Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: "DR3650v-4G
  Power Adapter
  Ethernet Cable
  Phone Cable
  Rubber Feet,
  SIM Card Eject Pin
  Quick Installation Guide"
• Package Type: Retail
• Warranty: Limited Lifetime
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
