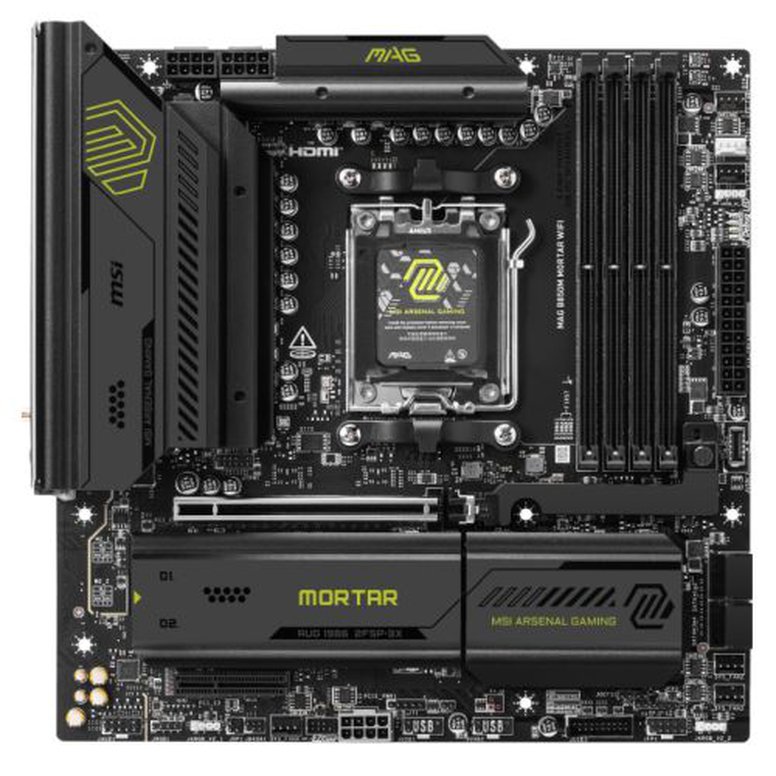

MSI MAG B850M MORTAR WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 7, 5G LAN, 3x M.2

MSI

£220.20

MSI

MSI MAG B850M MORTAR WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 7, 5G LAN, 3x M.2

£220.20

Add to Cart

Product Details

MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.

Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MAG Series

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

EZ PCIe Release

A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.

EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Triple M.2 Connectors

Triple M.2 Connectors – Onboard 3x M.2 connectors with two PCIe 5.0 solution, strengthened by M.2 Shield Frozr.

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

5G Network Solution

Featuring premium 5G LAN to deliver better network experience.

Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

Audio Boost 5

Isolated audio with a high quality audio processor for the most immersive gaming experience

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B850
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: "DDR5 (Dual Channel)
Supports Non-ECC, Un-buffered memory
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports CUDIMM, Clock Driver bypass mode only"
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8200+MT/s (OC)
Maximum Memory: 256GB
Graphics: Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
*Specifications may vary between CPU types
Storage: 4 x SATA III
3 x M.2

Ryzen 9000 & 7000 Series CPUs:
M.2_1 (2280/2260) - PCIe 5.0 x4
M.2_2 (2280/2260) - PCIe 5.0 x4

Ryzen 8000 Series CPUs:
M.2_1 (2280/2260) - PCIe 4.0 x4
M.2_2 (2280/2260) - PCIe 4.0 x4/x2

Chipset:
M.2_3 (2280) - PCIe 4.0 x2
RAID: "Supports RAID 0 , 1 and 10 for SATA storage devices
Supports RAID 0, 1 and 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors."
Wireless: "Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM"
LAN: 5GB LAN
Audio: Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
USB Ports Supported: Rear:
1 x USB 20Gbps Type-C
1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps Type-A
4 x USB 2.0
Back Panel I/O Ports: 1 x USB 20Gbps Type-C
1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x HDMI 2.1
1 x RJ-45
1 x Audio Line In
1 x Audio Line Out
1 x S/PDIF Optical Out
2 x SMA Antenna
Internal I/O Connectors: 1 x Power (ATX_PWR)
2 x Power (CPU_PWR)
1 x Power (PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel
1 x Chassis Intrusion
1 x Front Audio
1 x Tuning Controller
3 x Addressable V2 RGB LED
.: 1 x RGB LED
1 x TPM pin TPM 2.0
4 x USB 2.0
2 x USB 5Gbps Type-A
1 x USB 10Gbps Type-C
Accessories: Quick Installation Guide
EU Regulatory Notice
SATA Cable
2 x EZ M.2 Clips II
M.2 Screw
EZ M.2 Clip II Remover
Cable Sticker
EZ Wi-Fi Antenna
1 to 2 EZ Conn-Cable (v1)
EZ Front Panel Cable
Additional Features: See Overview
Package Type: Retail
Package Weight: To be confirmed
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
