ASUS

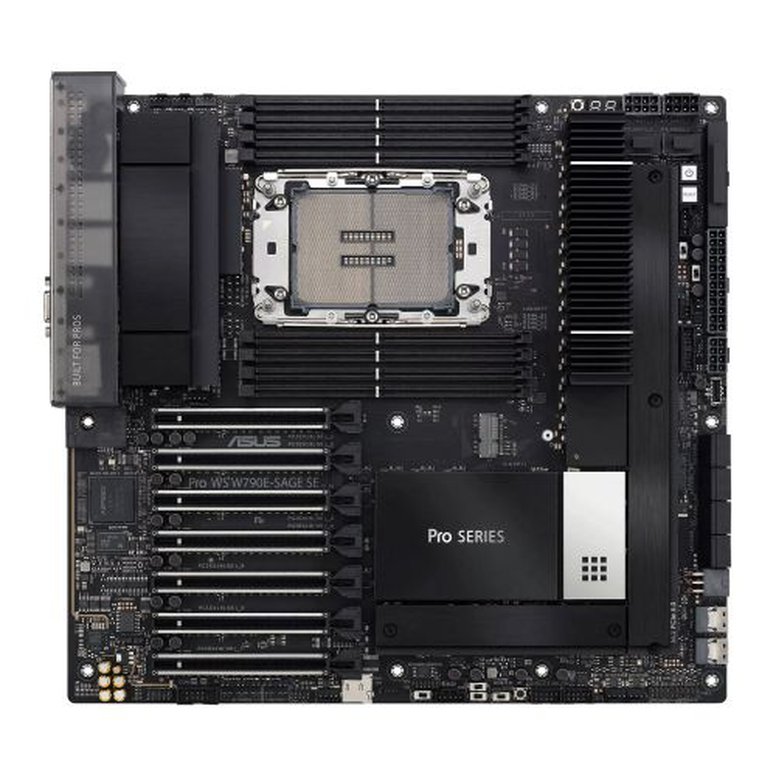

Asus PRO WS W790E-SAGE SE, Workstation, Intel W790, LGA4677, EEB, 8 DDR5, Dual 10G LAN, IPMI Remote Management, SlimSAS, PCIe5, 3x M.2
£1132.44
Asus PRO WS W790E-SAGE SE, Workstation, Intel W790, LGA4677, EEB, 8 DDR5, Dual 10G LAN,  IPMI Remote Management, SlimSAS, PCIe5, 3x M.2
ASUS
Asus PRO WS W790E-SAGE SE, Workstation, Intel W790, LGA4677, EEB, 8 DDR5, Dual 10G LAN, IPMI Remote Management, SlimSAS, PCIe5, 3x M.2
£1132.44
Product Details





Intel W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dual 10G LAN, Server-grade Remote Management, 14+1+1 power stages, USB 3.2 Gen 2x2 Type-C



  • Intel LGA 4677 socket: Ready for Intel Xeon W-3400 & W-2400 processors
  • CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
  • Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS
  • Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software - ASUS Control Center Express
  • Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
  • Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility







Performance, Productivity, Proven

The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.

ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.





Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.





Multi-GPU support

Pro WS W790E-SAGE SE features seven PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.





14+1+1 Power stages

Pro WS W790E-SAGE SE's VRM is comprised of 14+1+1 power stages, and delivers the power and efficiency that the latest Intel processors demand.





8-pin and 6-pin power connectors

Additional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.





Reliability with supreme memory overclocking

The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.





BMC remote management

An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses a 1G Realtek controller, with one 1G port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions - such as resetting or power cycling a system.





ASUS Control Center Express

The Pro WS W790E-SAGE SE comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.





Solid compatibility validation

The ASUS Pro WS W790 series has been extensively tested and validated under various environments and applications and support for the latest technologies with solid QVL lists for compatibility and reliability.





Protect your graphics cards

SafeSlot is a PCIe slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.





24/7 reliability

Optimized for around-the-clock operations, The ASUS Pro WS W790 series is tested under temperatures of up to 45°C and humidity of up to 80% in order to ensure it can thrive in different environments.






                                             ** Click here for full product details **
Product Specification

Description

Specification

  • Motherboard Type: Server / Workstation
  • Form Factor: EEB
  • Socket: Intel 4677
  • Chipset: Intel W790
  • #Hide#DDR Type: DDR5
  • CPU Support: For Xeon W-3400 and W-2400 Series Processors
    Supports Intel Turbo Boost Max Technology 3.0

    Click here for CPU support
  • RAM Technology: DDR5 (Eight Channel)
  • RAM Slots: 8 x DIMM
  • RAM Speeds: Up to 6800(OC)
  • Maximum Memory: 2048GB
  • Graphics: 1 x VGA port from AST2600
  • Graphics Ports: 1 x VGA
  • PCI/PCI Express: 7 x PCIe 5.0 (Seven at x16/x16/x16/x16/x16/x8/x16)
    4 x PCIe 5.0 (Four at x16/x16/x16/x16)
  • Storage: Intel Xeon W-3400 Series Processors:
    1 x M.2 (2242/2260/2280/22110) - PCIe
    1 x M.2 (2242/2260/2280/22110) - PCIe

    Intel W790 Chipset:*
    1 x M.2 (2242/2260/2280/22110) - PCIe
    SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
    SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
    8 x SATA III
  • RAID: "Supports Intel Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (IntelVMD)

    * Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately
    "
  • Wireless: -
  • LAN: Dual 10GB LAN & GB LAN
  • Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-C (at back)
    4 x USB 3.2 Gen2 Type-A (at back)
    2 x USB 3.2 Gen1 Type-A (at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x USB 3.2 Gen2 Type-C front panel connector"
  • Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
    5 x USB 3.2 Gen2 (4 Type-A, 1 Type-C)
    2 x USB 2.0
    1 x VGA
    2 x Intel dual 10Gb Ethernet
    1 x Realtek 1Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out
    1 x BIOS FlashBack button
    1 x Clear CMOS button"
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    5 x 4-pin Chassis Fan
    1 x W_PUMP+
    2 x 24-pin Main
    4 x 8-pin +12V
    1 x 8-pin PCIe
    1 x 6-pin PCIe
    3 x M.2 (Key M)
    2 x SlimSAS
    8 x SATA 6Gb/s
    1 x VROC Key
  • .: 1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x COM Port
    1 x FlexKey button
    1 x Front Panel Audio
    1 x LN2 Mode jumper
    1 x M.2 (Key E)
    1 x ReTry button
    1 x Safe Boot button
  • .: 1 x SPI TPM (14-1pin)
    1 x Start button
    1 x 20-3 pin System Panel
    1 x Thermal Sensor
    1 x BMC switch
    1 x VGA switch
    1 x BMC LAN fixed IP
    1 x IPMI
    2 x Q_PSU
    2 x PSU SMBus
    1 x Front panel location LED
    1 x Location button
    1 x VPP_I2C
    1 x Micro SD card socket
    1 x BMC_T_SENSOR
    1 x BMC LED
    1 x Location LED
    1 x Message LED
  • Accessories: 4 x SATA 6Gb/s cables
    1 x Thermistor cable pack
    1 x VRM Fan holder
    1 x Q-connector
    1 x M.2 Rubber Package
    1 x M.2 backplate Rubber Package
    1 x Screw package for M.2 Key E
    1 x CPU guard for LGA 4677 E1A
    1 x CPU guard for LGA 4677 E1B
    1 x ACC Express Activation Key Card
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 4.1000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 3 x LAN
  • #Hide#Max LAN Speed: 10GB LAN
