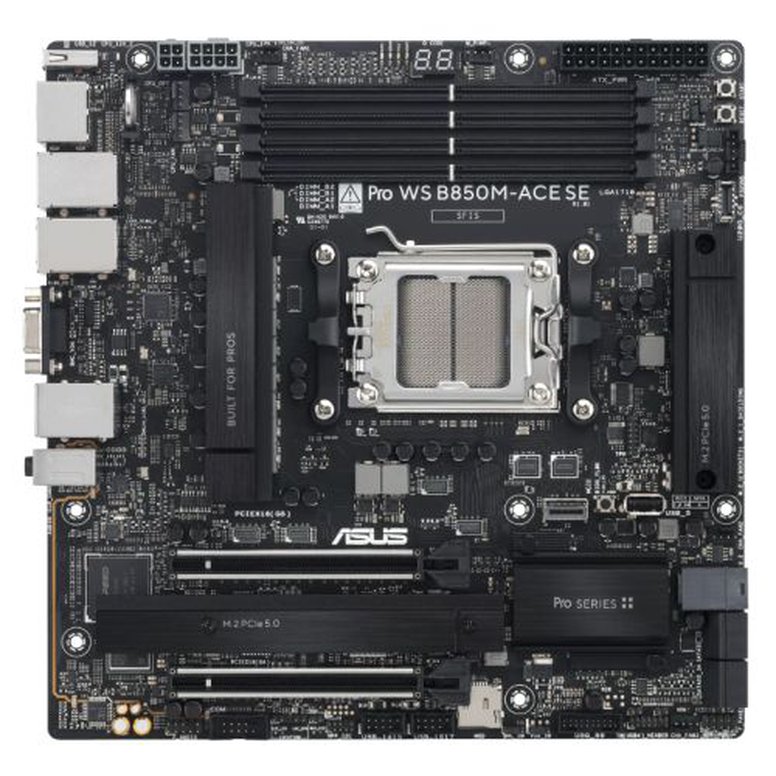

Asus PRO WS B850M-ACE SE, Workstation, AMD B850, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, 10G LAN, 3x LAN, Onboard BMC, IPMI, MCIO, 2x M.2

ASUS

£386.62

Out of stock

ASUS

Asus PRO WS B850M-ACE SE, Workstation, AMD B850, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, 10G LAN, 3x LAN, Onboard BMC, IPMI, MCIO, 2x M.2

£386.62

Out of stock

Product Details

ASUS Website

ASUS Pro WS B850M-ACE SE AMD Micro-ATX motherboard, with server-grade IPMI management, PCIe 5.0 x 16, PCIe 5.0 M.2, PCIe 5.0 MCIO, U.2 connector, 10Gb and 2.5Gb Ethernet, ready for USB4®

Ready for Advanced AI PCs: Built to power next-gen AI workloads with robust performance, ultrafast connectivity, and future-proof architecture.
AMD AM5 Socket Support: Compatible with AMD Ryzen™ 9000/8000/7000 Series and AMD EPYC™ 4005 Series processors.
Ultrafast Connectivity: Two PCIe® 5.0/4.0 x16 slot (one at x4), 10 Gb & 2.5 Gb LAN ports, two PCIe® 5.0 x4 M.2 slots, front USB 20Gbps Type-C® and MCIO NVMe support.
Server-grade IPMI Remote Management: Supports onboard BMC AST2600, along with ASUS Control Center Express IT management software for real-time monitoring and management.
Proven Reliability & Stability: Extensively validated with broad compatibility, a comprehensive QVL, and tested for 24/7 operation.

Pro WS B850M-ACE SE

The Pro WS B850M-ACE SE empowers workstation users of all levels by maximizing the performance of the latest AMD Ryzen™ processors via 8+2+1 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including a front USB 20Gbps Type-C® connector, plus 10Gb and 2.5Gb Ethernet.

This workstation motherboard is an ideal choice for content creation, AI and deep learning, and IT management.

Product Specification

Description

Specification

Motherboard Type: Server / Workstation
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B850
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: "DDR5 (Dual Channel)
Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Supports AMD EXPO

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function"
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8000+MT/s (OC)
Maximum Memory: 256GB
Graphics: Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA port from AST2600
1 x HDMI
1 x DisplayPort
1 x USB 10Gbps Type-C supports DisplayPort video output
PCI/PCI Express: Ryzen 9000 & 7000 Series CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)

Ryzen 8000 Series CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD B850 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode)
Storage: 4 x SATA III
2 x M.2
1 x MCIO
1 x U.2

Ryzen 9000 & 7000 Series CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4
MCIO connector (supports PCIe 5.0 x4 mode)*

Ryzen 8000 Series CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2280) - PCIe 4.0 x4/x2
MCIO connector (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset:
U.2_1 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable. The cable is purchased separately.
RAID: Ryzen 9000 Series CPUs: RAID 0/1/5/10
Ryzen 8000 Series CPUs: RAID 0/1
Ryzen 7000 Series CPUs: RAID 0/1/10
* Specifications vary by CPU types.
Wireless: -
LAN: "10GB, 2.5GB & GB LAN"
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: Rear:
2 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0
Back Panel I/O Ports: 2 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
1 x Realtek 1Gb (Dedicated management LAN for AST2600)
2 x Audio jacks
1 x Clear CMOS button
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
3 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
1 x 8-pin +12V CPU
1 x 4-pin +12V CPU
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x U.2
1 x MCIO
1 x USB 20Gbps USB Type-C
.: 1 x USB 5Gbps
2 x USB 2.0
1 x USB 2.0
1 x BIOS FlashBack button
1 x Chassis Intrusion
1 x COM Port
1 x Reset button
1 x Front Panel Audio
1 x SPI TPM (14-1 pin)
1 x Start button
.: 1 x 10-1 pin Front Panel System
1 x RTC Battery
1 x Thermal Sensor
1 x Thunderbolt (USB4)
Accessories: 2 x SATA 6Gb/s cables
1 x I/O shield
1 x Q-connector
1 x M.2 rubber package
1 x ACC Express activation key card
1 x Quick start guide
Additional Features: See Overview
Package Type: Retail
Package Weight: To be confirmed
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 3 x LAN
#Hide#Max LAN Speed: 10GB LAN
