ASUS

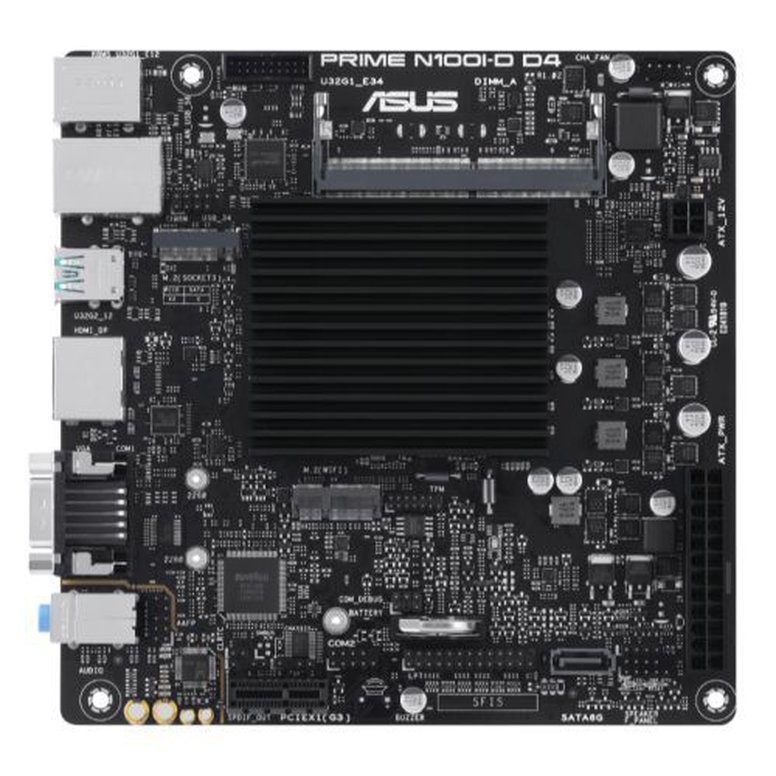

Asus PRIME N100I-D D4-CSM, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4 SODIMM, VGA, HDMI, DP, LPT, COM Port, 1x M.2, Fanless
£94.07
Out of stock
Asus PRIME N100I-D D4-CSM, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4 SODIMM, VGA, HDMI, DP, LPT, COM Port, 1x M.2, Fanless
ASUS
Asus PRIME N100I-D D4-CSM, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4 SODIMM, VGA, HDMI, DP, LPT, COM Port, 1x M.2, Fanless
£94.07
Out of stock
Product Details



Low-power, fan-less motherboard for Intel® Processor N100, with PCIe 3.0, DisplayPort/HDMI™/VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED Core

  • Ultrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb Ethernet
  • Comprehensive Cooling: CPU heatsink
  • Better serviceability: COM debug header to facilitate building and support processes
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection





Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of Intel® Processor N100. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME N100I-D D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.





ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.





ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Learn more





Cooling

PRIME N100I-D D4-CSM engineered with onboard CPU heatsink and a chassis fan header to ensure your rig stays cool and stable under intense workloads.





Performance

ASUS N100 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.





Asus Reliant

Ensures consistent performance with the finest components





Customisation

PRIME N100 series add the nuanced details that improve every experience, let you customize your system to create a uniquely personal look. Facilitate the assembly process and enable efficient troubleshooting.




Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: Embedded CPU
  • CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
  • #Hide#DDR Type: DDR4 SO-DIMM
  • CPU Support: N/A (Integrated CPU)
  • RAM Technology: "DDR4 non-ECC, un-buffered SO-DIMM memory
    16GB or less memory module recommended"
  • RAM Slots: 1 x SODIMM
  • RAM Speeds: Up to 3200 MHz
    Supported speed varies depending on CPU and memory configuration
  • Maximum Memory: 16GB
  • Graphics: Integrated Intel UHD Graphics
    24 EUs inside (Up to 750MHz)
  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DiisplayPort
  • PCI/PCI Express: 1 x PCIe 3.0 x1
  • Storage: 1 x SATA III
    1 x M.2 (2260/2280) - PCIe 3.0 x2
  • Wireless: -
  • LAN: GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    2 x USB 3.2 Gen2 Type-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0 ports

    Front:
    2 x USB 3.2 Gen1
    2 x USB 2.0
  • Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x VGA
    1 x HDMI
    1 x COM port
    1 x Realtek 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 4-pin +12V
    1 x M.2 (Key M)
    1 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    1 x USB 2.0
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
    1 x M.2 (Key E)
    1 x Chassis Intrude
  • .: 1 x LPT
    1 x S/PDIF out
    1 x SPI TPM (14-1pin)
    1 x Speaker
    1 x System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x Screw package for M.2 SSD
    1 x Screw package for M.2 Key E
    1 x User guide
    1 x ACC Express Activation Key Card
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7700 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
